腹腔镜超声联合正染ICG荧光导航下解剖性肝右后段及右前背侧段切除术1例报告(附视频)
作者:
通讯作者:
作者单位:

1.徐州医科大学附属徐州市立医院/徐州市第一人民医院 肝胆胰外科,江苏 徐州 221116;2.天津医科大学临床医学院,天津 300270

作者简介:

宋兴超,徐州医科大学附属徐州市立医院/徐州市第一人民医院主任医师,主要从事肝胆胰疾病微创治疗方面的研究。

基金项目:

徐州医科大学附属医院发展创新团队基金资助项目(XYFC202202);江苏省徐州市引进临床医学专家团队基金资助项目(2018TD001)。


A case report of laparoscopic anatomical resection of the right posterior segment and right anterior dorsal subsegment of the liver guided by intraoperative ultrasound combined with positive ICG fluorescence navigation (with video)
Author:
Affiliation:

1.Department of Hepatobiliary and Pancreatic Surgery, Xuzhou Municipal Hospital Affiliated to Xuzhou Medical University/Xuzhou First People's Hospital, Xuzhou, Jiangsu 221116, China;2.Clinical Medical College, Tianjin Medical University, Tianjin 300270, China

Fund Project:

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    背景与目的 腹腔镜解剖性肝段切除因其安全性、可行性及有效性,已广泛应用于肝肿瘤的手术治疗。正染吲哚菁绿(ICG)荧光导航结合术中腹腔镜超声已成为精准肝切除的重要手段,尤其在识别肝段/亚段范围、明确切缘方面显示出显著优势。本文报告1例应用腹腔镜超声联合正染ICG荧光导航完成的解剖性肝右后段及右前背侧段切除病例,以评估其临床可行性与效果。方法 回顾性分析1例肝脏占位性病变应用腹腔镜超声联合正染ICG荧光导航行解剖性肝右后段和右前背侧段切除术的老年女性患者资料。结果 术前行三维重建明确肿瘤位于肝右后段及右前背侧段,术中在腹腔镜超声引导下穿刺门静脉右前腹侧支并注射ICG,实现右前腹侧段的精准染色,依据荧光边界顺利完成肝右后段及右前背侧段的精准解剖性切除。术中出血约100 mL,未输血,切除组织病理确诊为中分化小胆管型肝内胆管癌,切缘阴性(R0切除),术后恢复良好,于术后第19天出院,术后6个月复查未见复发。结论 在解剖性切除肝右后段及右前背侧段过程中,腹腔镜超声联合正染ICG荧光导航可精准指示肝段边界,提高手术的安全性与切除的彻底性,对实现R0切除具有重要价值。

    Abstract:

    Background and Aims Laparoscopic anatomical liver segmentectomy has been widely applied in the surgical treatment of hepatic tumors due to its safety, feasibility, and effectiveness. The combination of indocyanine green (ICG) fluorescence-guided positive staining and intraoperative laparoscopic ultrasound has become an important technique for precision liver resection, particularly in accurately delineating hepatic segment/subsegment boundaries and achieving negative surgical margins. This study reports a case of anatomical resection of the right posterior segment and the dorsal subsegment of the right anterior segment of the liver, guided by laparoscopic ultrasound combined with ICG positive staining, to evaluate its clinical feasibility and outcomes.Methods A retrospective analysis was conducted on an elderly female patient with a hepatic space-occupying lesion who underwent laparoscopic anatomical resection of the right posterior segment and right anterior dorsal subsegment using intraoperative ultrasound combined with ICG fluorescence-guided positive staining.Results Preoperative three-dimensional reconstruction revealed that the tumor was located in the right posterior segment and right anterior dorsal subsegment. Intraoperatively, under laparoscopic ultrasound guidance, the anterior-ventral branch of the right portal vein was punctured and injected with ICG to achieve precise staining of the right anterior-ventral subsegment. The resection was performed along the fluorescent boundary, enabling accurate anatomical removal of the targeted liver segments. Intraoperative blood loss was approximately 100 mL without transfusion. Pathology confirmed a moderately differentiated small-duct type intrahepatic cholangiocarcinoma with negative margins (R0 resection). The patient recovered well and was discharged on postoperative day 19. Follow-up CT at 6 months showed no evidence of recurrence.Conclusion During anatomical resection of the right posterior segment and right anterior dorsal subsegment of the liver, laparoscopic ultrasound combined with ICG fluorescence-guided positive staining can accurately define segmental boundaries, enhance surgical safety, and ensure complete tumor resection, thus offering significant value in achieving R0 resection.

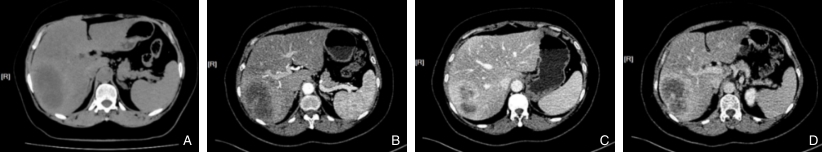

    图1 手术前CT影像 A:平扫肝右后段,出现低密度灶;B:增强扫描的动脉期,区域边缘显示为环形强化;C:门静脉期,边缘的环形强化持续存在;D:延迟期,边缘的强化效果有所减弱Fig.1 Preoperative CT images A: A low-density lesion is observed in the right posterior segment of the liver on plain scan; B: During the arterial phase of contrast-enhanced scan, the lesion shows peripheral rim enhancement; C: In the portal venous phase, the peripheral rim enhancement persists; D: In the delayed phase, the rim enhancement becomes less pronounced

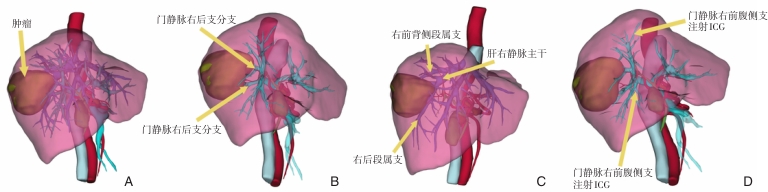

    图2 术前三维重建影像 A:肿瘤位于肝右后段,紧贴肝右静脉;B:荷瘤门静脉右后支;C:肿瘤回流静脉;D:模拟穿刺门静脉右前腹侧各分支Fig.2 Preoperative three-dimensional reconstruction images A: The tumor is located in the right posterior segment of the liver, adjacent to the right hepatic vein; B: Tumor-bearing posterior branch of the right portal vein; C: Tumor-draining hepatic vein; D: Simulated puncture of the anterior-ventral branches of the right portal vein
    图3 术中照片 A:在腹腔镜超声引导下进行穿刺,目标是门静脉右前腹侧支;B:根据ICG荧光染色边界标记预切线;C:腔镜切割闭合器离断右后段肝蒂;D:肝右静脉;E:肝后下腔静脉全程显露,离断Makuuchi韧带,完整切除右后段及右前背侧段;F:残肝断面Fig.3 Intraoperative photographs A: Puncture of the anterior-ventral branch of the right portal vein under laparoscopic ultrasound guidance; B: Pre-resection line marked based on the ICG fluorescence-stained boundary; C: Dissection of the right posterior segment pedicle using a laparoscopic stapler; D: Right hepatic vein; E: Full exposure of the retrohepatic inferior vena cava and division of the Makuuchi ligament, with complete resection of the right posterior segment and right anterior dorsal subsegment; F: Cut surface of the remnant liver
    图 穿刺正染ICG荧光导航腹腔镜解剖性肝右后段及右前背侧段切除术Fig.
    图4 术后标本及病理学结果 A:手术标本整体及剖面观;B:HE染色(×40)示右后段肝内胆管癌(小胆管型、中分化),肝切缘(-)Fig.4 Postoperative specimen and pathological findings A: Gross appearance and cross-sectional view of the surgical specimen; B: HE staining (×40) shows intrahepatic cholangiocarcinoma (small duct type, moderately differentiated) in the right posterior segment, with negative surgical margin (-)
